Electrical losses raise operating costs, heat cables and transformers, and reduce available system capacity. They usually result from conductor resistance, inefficient loading, poor power factor, harmonic currents, and aging equipment.
To reduce electrical losses in industrial power systems, engineers need accurate measurements, correct equipment sizing, and controls matched to the load profile. The objective is lower real energy consumption without creating resonance, instability, or unnecessary capital expense.
Every energized component dissipates some energy. Cable and busbar losses increase with the square of current, so modest current reductions can materially lower heating. Loose connections add resistance and create localized hot spots.
Transformers have fixed core losses and load-dependent copper losses. Motors lose energy through their windings, magnetic circuits, friction, and ventilation.
Distorted current adds another layer. Harmonic currents increase RMS current, neutral loading, transformer heating, and skin-effect losses.
Low power factor does not directly increase billed kilowatt-hours under every tariff. However, it raises current for the same useful power. That higher current increases upstream losses and can consume capacity needed for production equipment.

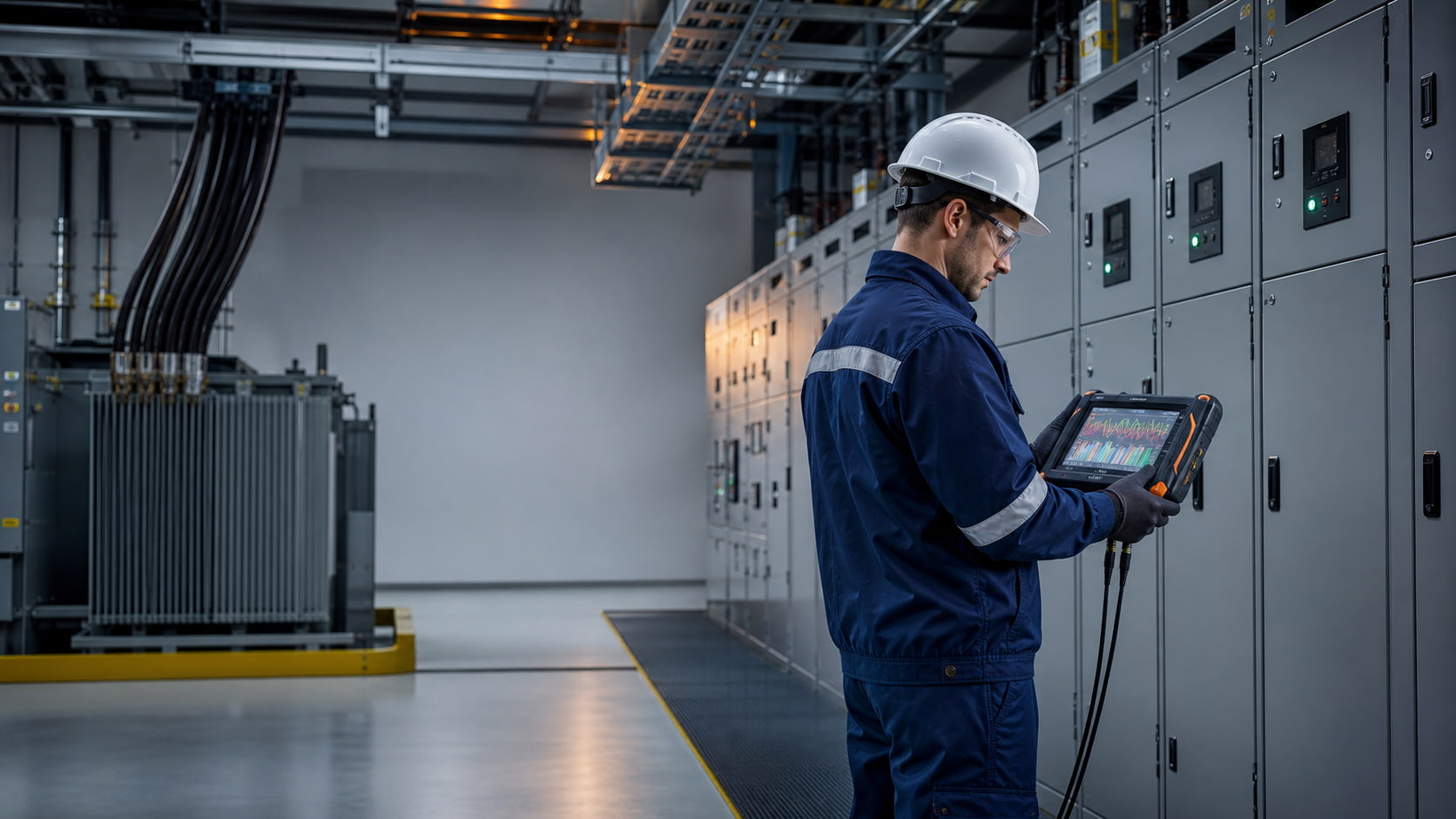

A credible industrial energy efficiency plan begins with a system baseline. Record voltage, current, real power, reactive power, power factor, demand, frequency, and total harmonic distortion at the utility incomer and major feeders.
Use time-synchronized trends across shifts, production states, and weekends. A single spot reading may miss peak loading or intermittent distortion. This evidence shows where to reduce electrical losses in industrial power systems without shifting problems to another feeder.
Combine electrical data with thermal inspections and maintenance records. Infrared scans can reveal overheated joints, phase imbalance, or overloaded conductors.
Compare transformer loading with nameplate data and efficiency curves. For motors, record load factor, operating hours, starts, control method, and mechanical output requirements.
Before analyzing the results:
Verify meter accuracy, current-transformer ratios, polarity, and time stamps.
Separate continuous base loads from variable production loads and short-duration peaks.
Trend individual harmonic orders when nonlinear loads change with process output.
Document operating constraints, planned expansions, tariffs, and acceptable downtime.
Start with low-risk corrective work. Tighten or replace degraded connections using approved procedures. Balance single-phase loads, remove unnecessary idle operation, and correct undersized conductors where voltage drop and heating justify replacement.
Keep switchgear, transformer cooling paths, and motor ventilation clean so heat can escape as designed.
Next, optimize major assets. Right-size new transformers for realistic loading instead of maximum connected load alone. Replace continuously operated, inefficient motors when lifecycle economics support the investment.
Variable-frequency drives can reduce energy use on centrifugal pumps and fans when the process frequently operates below full flow. However, drives may introduce harmonics and require suitable motor insulation and filtering.
Power factor correction reduces reactive current and can release system capacity. Capacitor banks suit stable, predominantly inductive loads when harmonic resonance risk is controlled.
Detuned capacitor banks are often appropriate where background distortion exists. Dynamic reactive compensation, such as an SVG or STATCOM, is better suited to rapidly changing loads, unbalance, or voltage-support requirements. Final selection should be supported by a system study.
Equipment should address the measured loss mechanism, not simply a broad power-quality label. Effective control of industrial electrical losses depends on matching each device to a verified cause.
The following comparison supports initial screening. Final ratings require load data, network impedance, duty cycle, environmental conditions, and coordination studies.
| Solution | Best suited to | Key design checks | Main limitation |
|---|---|---|---|
| Capacitor bank | Stable inductive loads requiring power factor correction | Required kvar, switching steps, resonance risk, and discharge time | Can overcorrect the system or amplify harmonics |
| Detuned capacitor bank | Reactive compensation where background harmonics are present | Reactor tuning, capacitor voltage, harmonic spectrum, and protection | Does not actively cancel broad harmonic distortion |
| Active harmonic filter | Variable nonlinear loads requiring harmonic mitigation | Harmonic spectrum, compensation current, CT location, and response time | Cost and rating increase with the required compensation current |
| SVG or STATCOM | Fast reactive loads, unbalance, or voltage variation | Required kvar range, response time, voltage level, and control mode | Does not replace energy-efficient loads or proper maintenance |
| VFD and efficient motor | Variable-torque pumps and fans with long operating hours | Load profile, harmonics, motor compatibility, cooling, and bypass requirements | Savings depend strongly on actual process demand |
For harmonic mitigation, define compliance and performance at the point of common coupling or the relevant internal bus.
An active harmonic filter is useful when the harmonic spectrum and load change over time. Passive filters may suit stable systems with dominant harmonic orders, but their interaction with network impedance must be studied.
Neither option repairs poor grounding, loose connections, overloaded conductors, or fundamentally inefficient equipment.
Procurement specifications should state:
Nominal voltage and frequency
Available short-circuit level
Load-current range
Harmonic spectrum
Reactive-power profile
Ambient temperature
Required enclosure rating
Communications requirements
Redundancy expectations
Acceptance measurements
After commissioning, repeat the baseline measurement process and compare equivalent production conditions. Successful power-quality improvement should reduce the targeted current, distortion, heating, or reactive demand without causing adverse voltage behavior.
This verification connects harmonic mitigation and power factor correction to measurable industrial energy efficiency outcomes.
Sustain the improvement through periodic trending. Configure alarms for abnormal transformer temperature, rising neutral current, deteriorating power factor, or changing distortion.
Reassess settings after production expansions. New drives, welders, furnaces, data-processing equipment, or other nonlinear loads can change the network response and the required harmonic mitigation capacity.
The answer depends on the site. High current in long conductors, incorrectly loaded transformers, inefficient motors, poor power factor, harmonics, and idle equipment are common contributors.
To reduce electrical losses in industrial power systems, use feeder-level energy balances and load-duration trends to identify which sources dominate instead of relying on assumptions.
Power factor correction lowers reactive current and therefore reduces resistive losses upstream of the correction point. The real-energy reduction may be modest when conductors are short or lightly loaded.
Its stronger benefits can include released capacity, improved voltage, and avoided demand charges where the electricity tariff applies.
An active harmonic filter is appropriate for variable nonlinear loads with changing harmonic spectra, especially when targeted cancellation and fast response are required.
Selection must consider measured harmonic current, current-transformer placement, system voltage, background distortion, and future load growth. The filter should not be sized from transformer capacity alone.
Yes, but their controls and electrical interaction require review. Capacitors can resonate with network inductance or alter the impedance seen by a filter.
A harmonic study should confirm detuning, switching logic, protection, and operating sequences across expected system configurations before combined operation.
Repeat measurements after major load additions, compensation changes, transformer reconfiguration, or unexplained heating and trips.
For critical plants, permanent monitoring provides better visibility than occasional surveys. At minimum, compare representative production periods during routine energy reviews and verify the measurement equipment regularly.
Request ratings tied to measured operating conditions, including voltage, current spectrum, reactive demand, temperature, enclosure requirements, fault level, and control response.
Ask for equipment losses, protection details, drawings, communication functions, commissioning criteria, and service support. For industrial electrical losses, avoid proposals that promise results without defining the measurement point and operating cases.
To reduce electrical losses in industrial power systems, measure first, identify the physical loss mechanism, and prioritize corrections according to lifecycle value.
Combine maintenance, conductor and transformer optimization, efficient motors, power factor correction, and harmonic mitigation only where measurements support each measure. Define acceptance tests and continue monitoring as production conditions change.
Begin with a detailed load study, then convert its findings into equipment specifications and measurable verification criteria.
